CTRACK-Traceable Midi Duct Rodder

CTRACK-Traceable Midi Duct Rodder

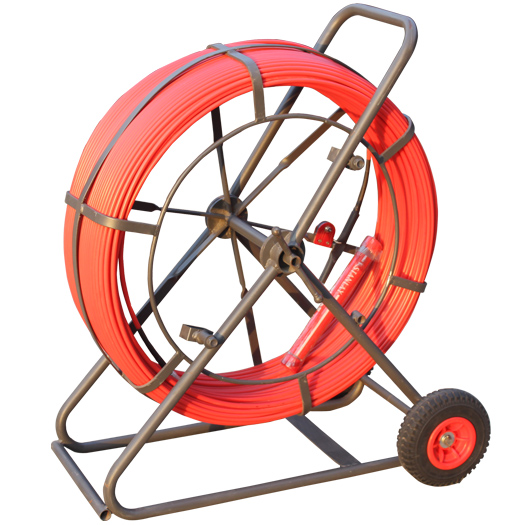

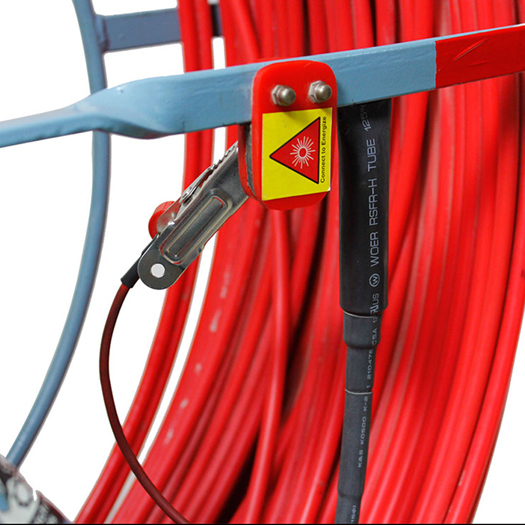

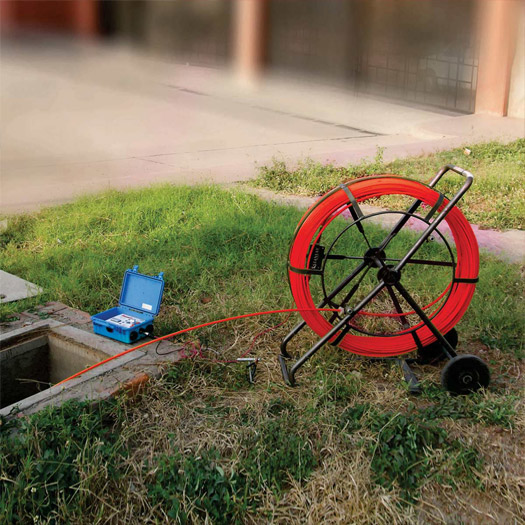

The CTRAK is a maxi traceable rodder for tracing route of buried/underground non metallic telecom HDPE ducts or plastic pipes of 36 mm dia or higher. Ideal for maintenance of outside plant buried telecom optical fiber duct networks. The CTRAK is based on a sturdy composite rod of 9mm dia with a built in 1mm copper wire that is rigid yet flexible enough to guide into non metallic HDPE ducts/plastic pipes and metal pipes up to lengths of 300 meters. The base of the frame contains a terminal box that provides a connection to the inbuilt copper tracer wire of the duct rod. After inserting the traceable rod into the duct which is to be route traced, apply signal from the direct connection lead of a transmitter to the terminal and connect the other lead of the transmitter to an earth stake, which then excites the full length of the rodder to enable trace the buried pipe. Use any Digital Pipe & cable locating receiver to trace the route of the buried pipe.

Product Specification

Length : Options 150m, 200m, or 300m Dimension : 91x53x94 cms “AB frame” Rod Dia 9.0mm (Nominal) Size of Copper Wire 1mm Dia


• Compact & easy to transport in a pickup jeep or small transport vehicles.
• Enables very rapid route tracing of buried pipes.
• Provided with an M12 male threaded rod end on the front tip to allow a sonde to be attached for locating blockages in buried pipe.

Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

File Type
File Size
Last Uploaded
55.64 KB
April 26 2019 13:25:12
