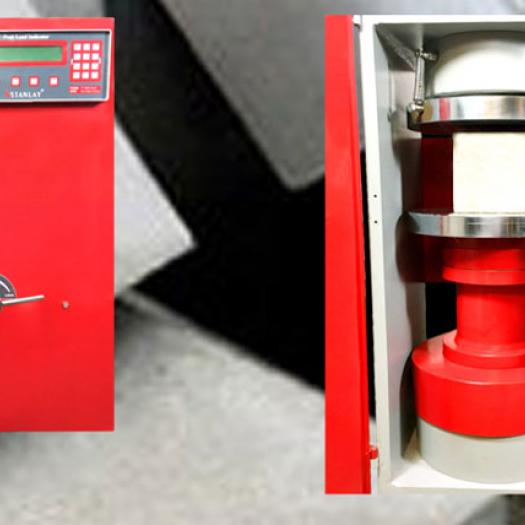

ST9000 Concrete Compression Machine

ST9000 Concrete Compression Machine

ST 9000 compression testing machine Series has been designed for simple and reliable test of concrete for its compressive strength. Machines are provided with digital pace rate indicator. The pace rate can be controlled manually by operator while test in progress.

System Description

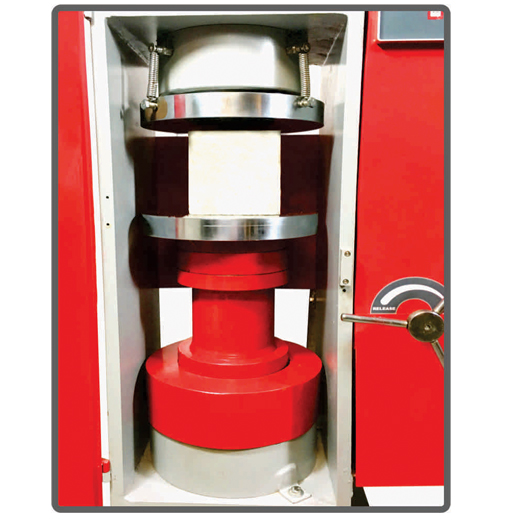

The loading frame has a fully welded construction with a top crosshead, base and solid side walls with the precision ground hydraulic piston fixed to the base. The machine’s platens come with a self- aligning action and suitably sized spacers to accommodate a variety of specimen sizes. The two speed pump allows fast approach of platens, for daylight closure and also allows automatic, precise control over the load application; a pace rate on the display gives operator feedback on the loading rate, peak load and stress. The calibration range of the machine is from 10% to 100% of the machine capacity, over which range the accuracy is ± 1% of the applied load.

Product Specification
Series ST 9000
Capacity 1000kN, 2000kN, 3000kN
Dimension 700mmX330mmX1100mm
RAM Dia 165mm,230mm and 260mm
Size for Testing

Cubes 70.6mm, 100mm and 150mm,

Cylinder 100mm dia X 200mm height,

150mm diaX  300mm height

Stroke Length 50mm
Least Count 1kN
Max Clearance between Platens 370mm
Data Storage Nil
Pace Rate Control Manual
Data Download (Real Time) Via RS 232
LCD Display 2 line display

• Self-aligning platen with fast accessory change capability.
• Piston, lower platens and upper platens are of hard chrome. Supplied with full set as per available specification of India/AASHTO/International standards.
• Stanlay CTM is conforming to IS: 14585 (2000).
• Overload safety protection.
• Safety features such as metal door with a Perspex window.
• Operator can predefine machine capacities. Specific capacity can be selected from the drop down menu.

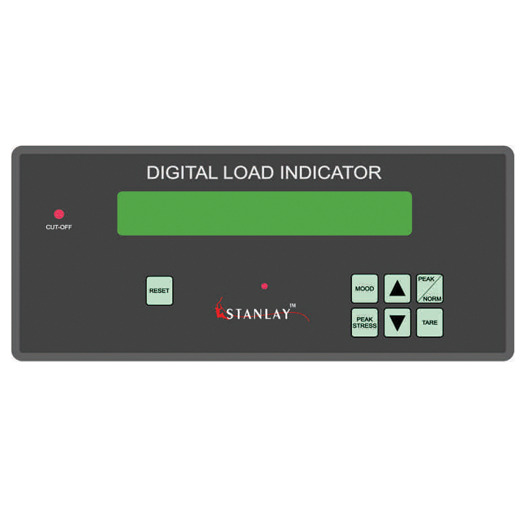

• Load indicator displays – Peak Load, Peak Stress and Unique Record No.
• Data Logging through RS 232 to computer in real time
• Peak stress calculation based on sample type and shape.
• Easy to operate.
• 2% overload facility to calibrate the machine up to full capacity.
• Multi function Keyboard
• 2% overload facility to calibrate the machine up to full capacity.
